2004.5-2006 LLY Duramax DSP5 SOTF Shift On The Fly Switch
2004.5-2006 LLY Duramax DSP5 SOTF Shift On The Fly Switch
2004.5-2006 LLY Duramax DSP5 SOTF Shift On The Fly Switch
2004.5-2006 LLY Duramax DSP5 SOTF Shift On The Fly Switch
$40.00

2004.5-2006 LLY DSP5 SOTF

+

Only 0 left in stock

2004.5-2006 LLY Duramax DSP5

Key Features:

  • Not Having To Pullover To Flash A Different Tune, Switching Instantly Between Calibrations.
  • Stock, Economy, Tow, Heavy Haul, Performance At The Tip Of Your Fingers.
  • Valet Mode If You Have An Employee Or Teenager So They Can't Adjust Your Tune Settings.
  • Includes All Items Required For Install.
  • Can Be Mounted Anywhere.
  • Will Work On Duramax Diesel Engines 2004.5-2006 LLY.

Description:

  • What Is DSP5?

    • DSP5 Stands For "Duramax Switch Performance". DSP5 Gives You The Ability To Switch Between 5 Calibrations With The Purchase Of SOTF (Shift On The Fly).
    • This Switch Needs To Be Used With An EFILive Tuner.
    • You Must Have A DSP5 Tune To Use This Switch.
    • Calibrations Not Included.

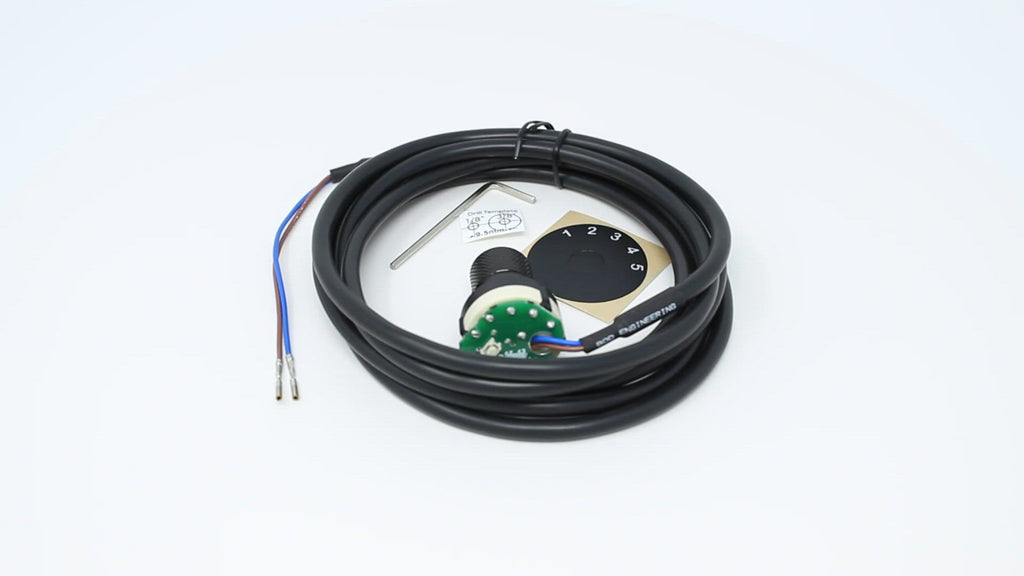

Includes

Includes:

  • Selector Switch
  • Aluminum Knob
  • 1-5 Decal
  • Allen Key

Install

Install Instructions:

  • ECM Pin Out Duramax 2004.5 - 2006 LLY: Brown Wire 32 - Blue Wire 50
  • Place Pins In The Indicated Holes.
  • After You've Placed The Pins In The Connector And Plugged The Connector Back In, Turn On The Ignition And Press The Small Button On The Back Of The Switch.
  • If One Of The LED's Light Up, The Pins Are Probably Installed. If Not Try Switching The Hole You May Have Put Them In The Wrong Spot.
  • ATTENTION! Your DSP5 Switch Has One Nut & One Locking Washer. You Will Remove Both The Nut And Locking Washer When Placing It From Behind The Dash. Do Not Use Unnecessary Force When Tightening Them Back On The Switch, Be Gentle.
